JumpingJet Rainbow Flash III /DMX/02
Ref. 34138

Description

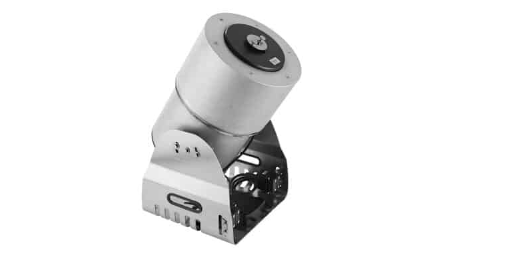

JumpingJet Rainbow Flash III /DMX/02
Ref. 34138

Jumping Jet Rainbow Flash III /DMX/02, an impressive water-light effect; crystal-clear, laser-like water jets shoot in wide arcs through the air. The cut off function enables the 18 mm water jet to be cut individually into short sections. The ring illumination on the stainless steel case with its multi-coloured light spectrum draws special attention at night.

The Jumping Jet is now equipped with 24 V DC technology, thus integrating ideally into the OASE 24 V DC system. The Jumping Jet Rainbow Flash III / DMX / 02 is DMX-RDM compatible and suitable for remote maintenance with the corresponding controller. The colour of the integrated RGBW LED light and the length of the water jet can be freely selected and controlled. Through the use of controllable pumps additional dynamic parabolic widths and heights can be generated.

Technical characteristics

JumpingJet Rainbow Flash III /DMX/02
Ref. 34138
Features

Can be used indoors and outdoors with dry installation technology
Surprising water features, dynamic parabola possible
Precise, crystal clear water jets
Jet diameter 18 mm
Cut off function
Vibration-free, quiet operation
Extremely stable – with or without floor anchoring
Compact stainless steel design
Sea water Jumping Jet Rainbow Flash III on request
Integrated illumination effects with strong RGBW-LED light
24 V Technology
DMX/RDM capable
Ring illumination as a new effect
Long service life

Specs

Number of DMX channels: 8 Units
Rated current: 0.83 A
Light colour: RGBW
Colour temperature LED white: 6500 (± 200) K
Power consumption: 20 W
Jet diameter: 18 mm
Vertical swing range: 45 – 90 độ
Water parabola max., laminar with light: 6.00 m
Pressure-side connection: G 1 ½
Max. operating pressure: 0.3 bar
Water depth, max.: 0.25 m
Environmental condition: submersible application: Water temperature: min 4°C to max. 35°C
Environmental condition: dry application: Ambient temperature: max. 30°C with natural convection, max. 40 with forced convection, no direct sun exposure permitted
Net weight: 39.40 kg
