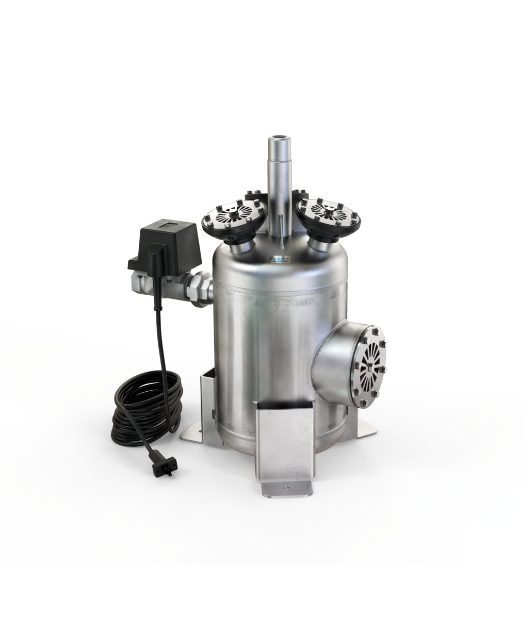

AirNozzle 24 E-30 m vertical /01
Ref. 48426

Description

AirNozzle 24 E-30 m vertical /01
Ref. 48426

The compressed air driven AirNozzle is available for high fountain heights of 30, 50 and 70 m. These AirNozzle are operated with compressed air and can be controlled by DMX with the DMX Underwater Switch 24 V DC / DMX / 02.

Water Level & Refill behavior: For a long-term stable operation, it is important to keep the water level constant. This is because the fill level and the replenishment time depends on the water level. In this sense the best surrounding for such water features are waterbodies in which the water level is determined by a dam or an overflow.

Technical characteristics

AirNozzle 24 E-30 m vertical /01
Ref. 48426
Features

Compact, robust stainless steel Air Nozzle
IP68 in 24 voltage technology; for underwater use
Pluggable, easy to install and to connect through underwater OASE technology
Short refill times
For fountains up to 30.00 m in height

Specs

Dimensions (L x W x H):1120 x 300 x 483 mm
Fountain height, max.: 30.00 m
Shooting frequency/water refill time: 6 sec.
Amount of water per shot: 45 l
Nozzle orifice: 24.0 mm
Water level min.: 650 mm
Water l484evel max.: 650 mm
Air pressure max.: 6 bar
Connection air inlet: CH0367#03
Power consumption: 18.5 W
Rated current: 0.46 A
Power cable length: 7.50 m
Power connection type: 24 V DC plug
Material: Plastic / Stainless steel 1.4301 (AISI 304)
Net weight: 20.00 kg
