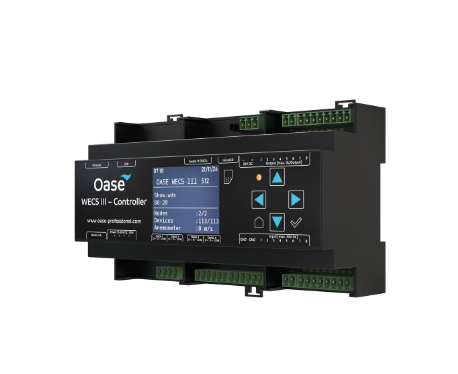

WECS III 512 /DMX/02
Ref. 84966

Description

WECS III 512 /DMX/02
Ref. 84966

For medium-sized fountain systems
Featuring 512 channels, four DMX/RDM lines and several connection options, the OASE controller already offers everything you need to control medium-sized fountain systems or building illuminations.









Technical characteristics

WECS III 512 /DMX/02
Ref. 84966
Features

512 DMX-RDM channels (1 Universe)
4 DMX / RDM lines
Freely programmable inputs and outputs for controlling, shows, wind anemometers, water level sensors, protections etc.
Calendar function for: day, weekly & annual schedule
Standalone entertainment DMX/RDM controller – suitable for the software module "Control" of the Depence² show software
Includes WEPS software
Large 2" colour display (240×320 px) and easy-to-access connections for convenient operation
Ideal for controlling interactive fountains
Suitable for live operation: changes to the fountain programming are immediately visible live
Connection to WECS III Node/DMX/02 (84969) via Ethernet for master-slave operation
Regular software and firmware updates available – via Ethernet, USB, SD card
24/7 Remote access possible through the integrated web server
Data lines can be expanded up to 68 lines (with up to 16 nodes)
Specs

Rated voltage: 24 V DC
Rated current: 0.42 A
Power consumption max.: 10 W
Protection class IP20 (power unit)
Permissible operation temperature: 0 – 40 °C
Permissible humidity (no condensation): 0 – 80 %
Number of digital inputs (galvanically isolated): 8 Units
Number of digital outputs (galvanically isolated): 8 Units
Number of DMX/RDM lines: 4 Units
Number of DMX/RDM channels: 512 Units
Number of interfaces Ethernet 10/100 MBit: 1 x RJ45
Number of interfaces Node Link 100/1000 MBit: 1 x RJ45
Number of interfaces USB 2.0: 1 Units
Number of interfaces microSD card (FAT32, max. 32 GB): 1 Units
Calender Function: Yes
Display type IPS
Display resolution: 240 x 320 px
Dimensions (L x W x H): 158 x 94 x 58 mm
Net weight: 0.40 kg
