ProfiLux LED S W /01
Ref. 72705

Description

ProfiLux LED S W /01
Ref. 72705

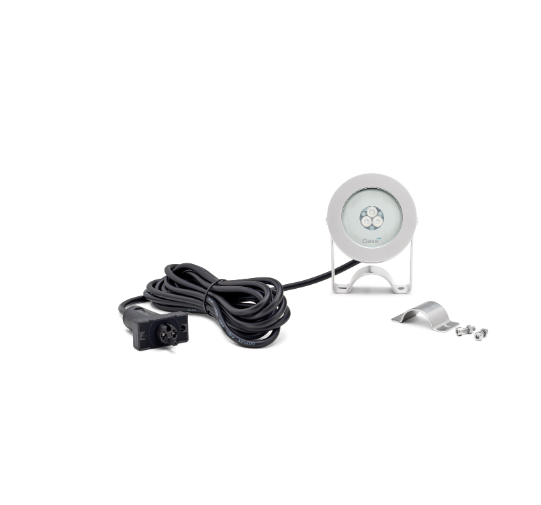

The ProfiLux LED S W Spot /01 is a powerful neutral white light with robust mounting bracket for ground installation and nozzle tube mounting and a beam angle of 25°, 4000 K and 391 lumens.

The neutral white light comes with high quality, robust stainless steel housing for fresh-, pool- and sea water. The flat surface prevents deposition of dirt. These LED lights have a temperature regulation so that wet and dry installation is possible. The temperature controlled high-class brand LED has a lifetime up to 100,000 hours.* The colour temperature is 4000 K. The white light comes with a watertight 24 V/DC connector and reverse polarity protection.







Technical characteristics

ProfiLux LED S W /01
Ref. 72705
Features

Energy efficient neutral white LED- light with mounting bracket for ground installation and nozzle tube mounting ( designed for socket 10 (51018)).
Flat surface due to stepped glass
391 Lumen with a beam angle of 25°, max. 10 W
Colour temperature 4000 K
Dimensions: (Ø x H) 75.2 x 105 [mm]
Temperature controlled high class brand LED
Wet and dry installation – waterproof IP68 / 4m
For fresh-, pool- and sea water
Reverse polarity protection
DMX/RDM-controllable with Underwater Switch 24 V DC (on/off)
Lifetime: 100,000 h*
Specs

Certificate: MET US + C
Luminous flux with all on: 391 lm
Luminous flux with: 391 lm
Colour temperature LED white: 4000 (± 200) K
Colour rendering index (CRI): 80 %
Beam angle: 25 Degrees (± 2)
Stroboscope effect: No
Weighted energy consumption: 11 (kWh/1000h)
Rated voltage: 24 V / DC
Power consumption: 10 W
Rated current: 0.42 A
Dim frequency: 2800 Hz
Power connection type: 24 V DC plug
Power cable length: 4.00 m
Protection class: IP68; 4 m
Dimensions (Ø x H): 75 x 70 mm
Material: Stainless steel 1.4404 (AISI 316L)
Net weight: 0.80
