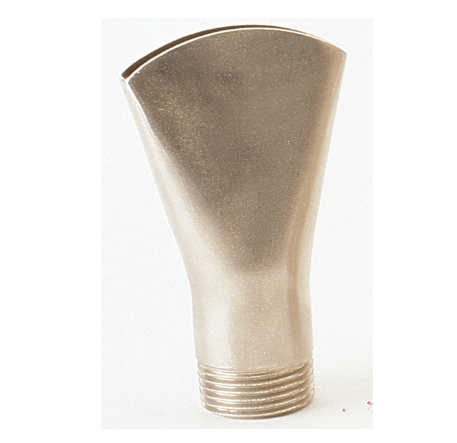

Fan Jet 10 - 6 E
Ref. 53056

Description

Fan Jet 10 - 6 E
Ref. 53056

The water veil generated by these nozzles not only has a bizarre beauty, it is also extremely practical: It is particularly well suited to conceal exposed technology.
Depending on the installation the fan nozzles generate either a vertically ascending water veil, or a diagonally spouting water veil of 6 or 8 mm in thickness. Thanks to its large surface area the attractive water pattern can conceal a foundation base, or exposed pipe and pump equipment from the eyes of observers. The nozzles work independently of the water level and require a throttlez valve to regulate the water pattern.



Technical characteristics

Fan Jet 10 - 6 E
Ref. 53056
Features

Fan-shaped gush of water
Modern stainless steel look
Stainless steel nozzle

Specs

Suitable for Multi Directional Drive II / DMX / 02 (50524)
Dimensions (L x W x H): 110 x 70 x 34 mm
Water film thickness: 6.0 mm
Material: Stainless steel 1.4571 (AISI 316Ti)
Net weight: 0.2 kg
